Form A Sign are Experts in Manufacturing Custom Pipemarker Stickers Australia Wide
Australian Standard (AS) 134-1995 Pipeline Markers Australia are pipe marking labels used to identify the flow and contents of pipes within buildings. Correctly labeling your pipes assists with maintenance and servicing. Pipeline Markers or pipe marking labels should be located adjacent to service appliances, valves, junctions, wall penetrations and bulkheads. Markers shall be placed no more than 8m apart except for long, external uninterrupted pipes where they should not exceed 50m. Form A Sign produces customised Pipemarker stickers that identify both the contents and flow of the pipe, and your business name.
Pipemarkers are available in 3 sizes.
LARGE 475x60mm For pipes over 70mm diameter.
MEDIUM 475x35mm For pipes from 40mm to 70mm diameter.
SMALL100x20mm For pipes under 40mm diameter.
| Pipe Contents | Background Colour | Text Colour |
|---|---|---|
| Water | Jade Green | White |

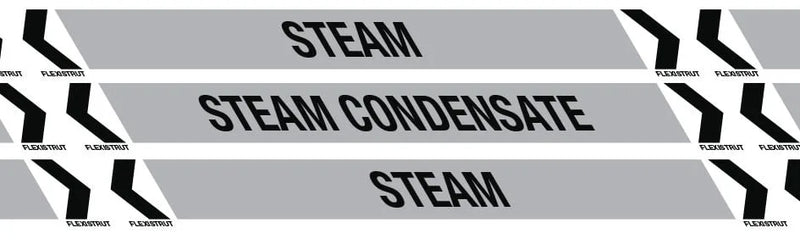

| Steam | Silver – Grey | Black |
| Oil – Mineral, Vegetable or Animal, Flammable or Combustible Liquids | Brown | White |
| Gases, either Gaseous or Liquefied | Sand | Black |
| Acids and Alkalis | Violet | Black |
| Air | Light Blue | White |
| Other Fluids, including Drainages | Black | White |
| Firefighting Materials | Safety Red | White |
| Electricity | Orange | White |
| Communications | White | Black |

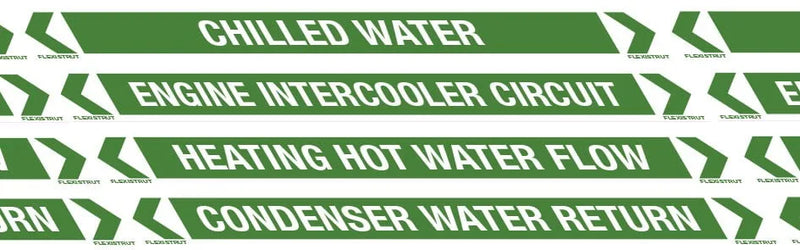

GREEN
Chilled Water
Chilled Water Flow
Chilled Water Return
Heating Hot Water
Heating Hot Water Flow
Heating Hot Water Return
Condenser Water
Condender Water Flow
Condenser Water Return
Hot Water
Hot Water Flow
Hot Water Return
Cold Water
Domestic Cold Water
Domestic Hot Water
Cooling Water
Heating Water
Potable Water
Non-Potable Water
Storm Water
Condensate
Rainwater
Filtered Water

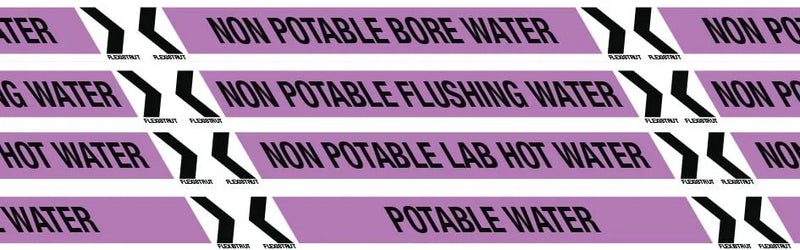

Purple
Non Portable Lab Cold Water
Non Portable Lab Hot Water
Non Portable Flushing Water
Non Portable Bore Water

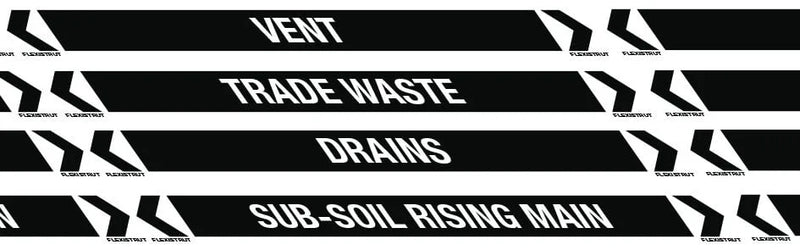

Black
Drains
Sewerage
Trade Waste
Vent
Grease
Chamber Vent
Reverse Osmosis Water

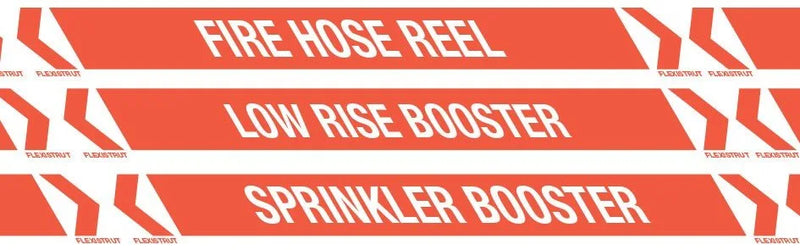

Red
Fire Hose Reel
Fire Hydrant
Fire Service
Fire Sprinkler
Pre-Action
AFFF Foam
Grey
Fire Hose Reel
Fire Hydrant
Fire Service
Fire Sprinkler
Pre-Action
AFFF Foam

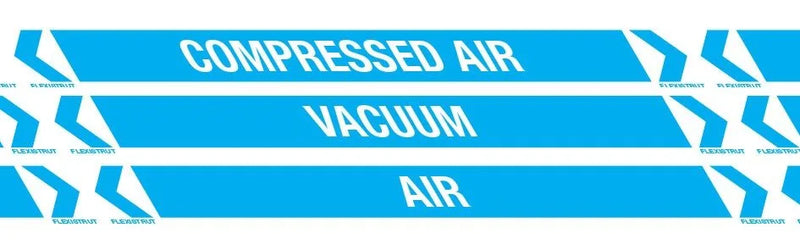

Blue
Vacuum

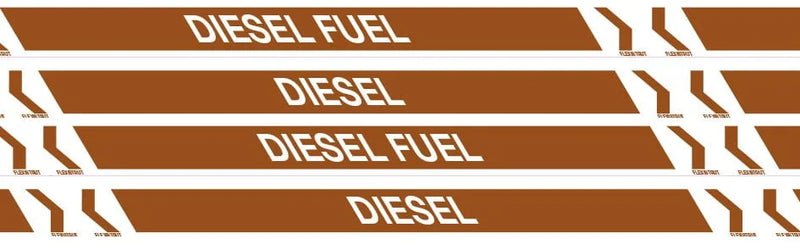

Brown
Diesel Fuel
Recycled Water

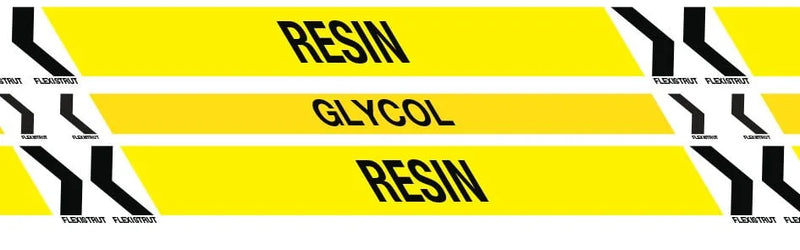

Yellow
Natural Gas
Natural Gas KPA
Refrigeration
If your Pipemarker sticker is not within our standard range, we can create custom stickers for you. Our quotes are fast, our production is fast, and we deliver Australia Wide. Minimum orders are 100 stickers per label. Pipemarker labels are packaged into packs of 10 for easy installation.
