GX2-HD Drive on Narrow 300mm GX3 drum & frame. Excellent for narrow anchor lockers. Specify 12 or 24v

GX1-4 Series Winch Kits inc. backing plate, nuts & bolts, circuit breaker, switch panel & solenoid.

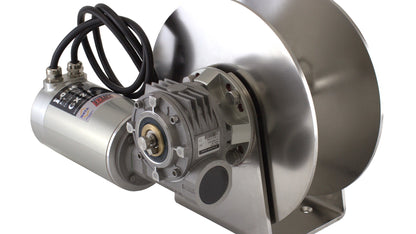

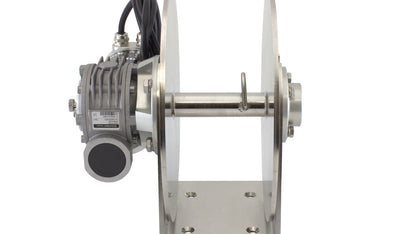

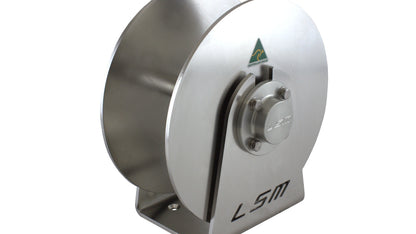

LSM are proud to release the GX3-N, our specialized slimline drum anchor winch made for especially narrow anchor lockers.

Featuring a 300mm drum and measuring just 300mm in width, the GX3-N is well suited to sailing & European style pleasure craft.

The GX3-N is available with its own custom-made narrow deck roller & has 3 custom rope & chain kits available.

Like all GX Series winches the GX3-N is Australian Made and features our IP68 motor, Italian Made transmissions, and 6mm 316SS construction.

Specs

·         1000W Purpose Built Permanent Magnet Motor, 125mm width, 4 Brush Design

·         Machined Solid 32mm 316SS Spool Shaft

·         High Polished 6mm 316SS Plate Construction Throughout

·         Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)

·         Machined Roller Bearing Cover (triple sealed)

·         No Paint or Silicon Sealants

·         No Mild steel outputs or fittings

·         Fully Waterproof Machined Motor (LSM Exclusive)

·         Prerigged with tinned cable leads

·         Machined (not cast) Fastchange Bearing Collar

·         Capacity 50m x 10mm Rope + 9m x 8mm chain or

·         70m x 6mm HMPE rope plus 8m x 10mm DBN topshot & 9m x 8mm chain

·         Drop/Retrieve up to 160ft (48m) per minute

·         12 Adjustable Gear/Motor Mounting Positions

·         Manual Release Feature in the event of power loss

·         3500kg Holding Power at Anchor-No need to tie off

·         Huge 1500kg Max Pull (empty drum)

·         90kg max recommended working load

·         All 316SS and Machined 6160 Alloy Construction

·         Rounded Style Transmissions for easier fitting-100% Made in Italy

·         Designed and Manufactured in Australia

Each Kit Includes the Following as Standard

·         Winch

·         6mm Base Plate

·         400 Amp Solenoid

·         Genuine MP Marine Grade Circuit Breaker (made in the USA)

·         Anodized Alloy Toggle Switch Panel

·         All Nuts, Bolts, & Washers Needed for Installation

·         Warranty Information, Switch Panel Template, Installation Instructions
